1210-1330nm Fiber Coupled Laser Diode For Infrared Laser Module Satellite Receiver

Name: 12101330nm Fiber Coupled Laser Diode For Infrared Laser Module Satellite Receiver
Brand: XINLAND
Price: 1 USD

Wholesale 1210-1330nm Fiber Coupled Laser Diode For Infrared Laser Module Satellite Receiver from china suppliers

Brand Name : XINLAND

Model Number : XLP-1210~XLX-1330 Multi Mode Fiber Coupled Laser Diode

Certification : CE

Place of Origin : Xi'an Shaanxi

MOQ : 100pcs

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Dozen/Dozens per Day

Delivery Time : 7 days

Packaging Details : 1pcs/polybag,10pcs/inner box,100pcs/ctn

Wavelength : 1210-1330nm

Fiber Type : MMF

Fiber Core : 105um

Package Type : 2-Pin/14-Pin

Connector : FC

Contact Now

1210-1330nm Fiber Coupled Laser Diode for Infrared Laser Module Satellite Receiver

Product Details:

Type: Fiber Coupled Laser Diode

Wavelength: 1210-1330nm(Include1280nm,1310nm)

Fiber Type: MMF

Fiber Core: 105um

Package Type: 2-Pin/14-Pin

Connector: FC

Product Specifications:

Wavelength	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
1210-1330nm (Include1280,1310)	1W	MMF	105um	14-Pin	FC	√	√
1210-1330nm (Include1280,1310)	1.2W	MMF	105um	2-Pin	FC	×	×

1210-1330nm Fiber Coupled Laser Diode For Infrared Laser Module Satellite Receiver

OPERATING NOTES
◆Avoid eye and skin exposure to direct radiation during operation.
◆ Do not bend the fiber wire excessively to avoid the core breaking.
◆When the optical fiber module is not in use, please install the dust cover at the optical fiber connector.
◆Do not place heavy objects on the optical fiber, and do not pull the optical fiber excessively to avoid damage to the optical fiber.

Product Tags:

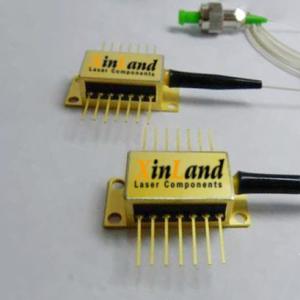

1210-1330nm Fiber Coupled Laser Diode For Infrared Laser Module Satellite Receiver Images
